Switching Power Supply Block Diagram

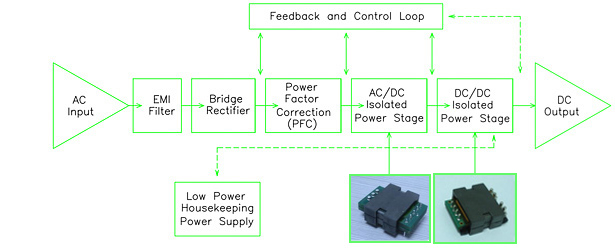

The switching power supplies are used to convert somegiven input voltage to some regulated output voltage and current.They are depending on the input voltage level,output power and regulatory requirements.A switching power supply is consist of some or all of the following blocks,and the planar fake rolex transformer is used in the stage of AC/DC isolated or DC/DC isolated. In some cases,such as invers for altermate energy generation, the folw is reversed as one is taking a DC input and AC output.
